TUC D OFFSET COLUMN CONCRETE SKIP

The TUC D Offset Discharge Column Concrete Skip is designed to enable concrete to be poured into narrow shuttering or columns and against walls. The concrete skips are fitted with a patented integral gate which ensures continuity of concrete flow and a 200mm diameter 3 metre long heavy duty discharge hose which prevents segregation.

Gate operation is by means of a nylon rope attached to a spring return lever ensuring excellent control whilst allowing the operator to control the pour from ground level. The offset discharge enables the skip to be used close to the side of existing walls where access with a centre discharge skip may be a problem.

The TUC D is a rollover type concrete skip whereby the skip sits in the horizontal position for filling and reverts to the vertical when in use.

Options available for the TUC D are a quick release mechanism which allows for easy changing of discharge hose diameter and length.

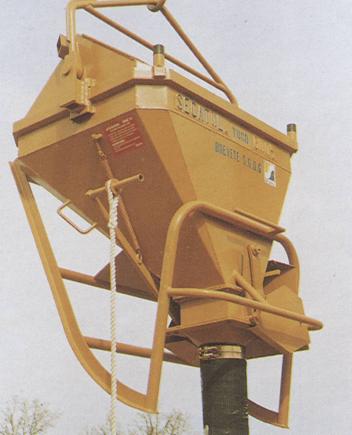

TUC D OFFSET COLUMN CONCRETE SKIP Image
pdfView The Brochure Page in PDF Format

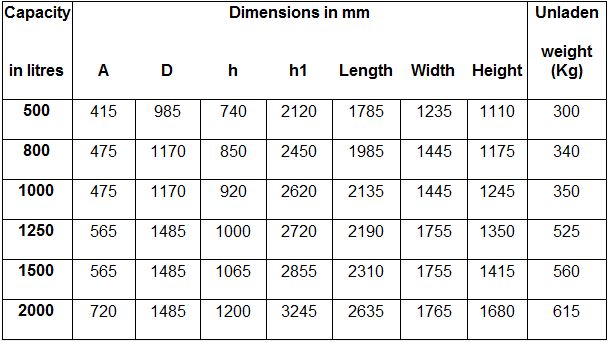

TUC D OFFSET COLUMN CONCRETE SKIP Table
